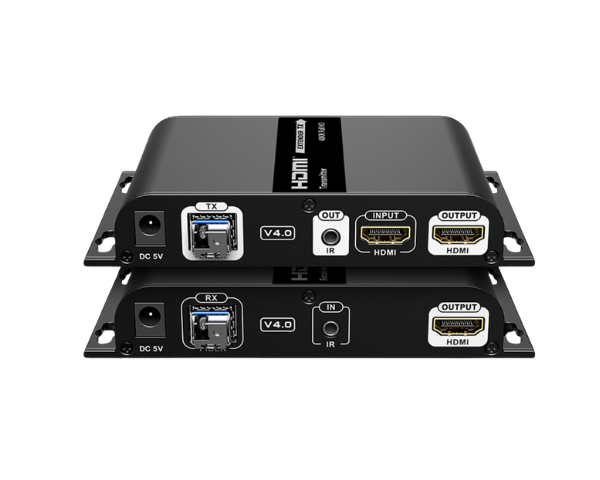

HDMI Optical Fiber Extender 40KM 1080p@60Hz uses single-mode optic fiber (SMF) to transmit high-definition signals to a distance of 40km, and supports local loop-out and IR passback. It can be widely used in security monitoring, medical systems, commercial display and other devices Key Features: 1080p@60Hz SMF(LC) 40km Over IP HDMI Loop Out IR Passback Lightning/Surge/ESD Protection Highlights: Supports 1.25Gbps single mode fiber module with a maximum transmission distance of 40km Supports resolution up to 1920×1080@60Hz Supports IR passback for remote control The transmitter supports HDMI loop out for local monitoring Lightning Protection,Surge Protection,ESD Protection Wall mounted design Technical Details Power Supply : DC 5V/2A Power Consumption : TX < 3W , RX < 3W HDMI Version : HDMI 1.3, HDCP 1.4 Compatible Supported Resolutions : 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz , 1080p@50/60Hz DDC Signal Voltage : 5Vp-p (TTL) Optical Wavelength : 1310nm, 1550nm Fiber Connector : LC Optical Fiber Type : Single Mode Fiber (SMF) Transmission Rate : 1.25Gbps Transmission Distance : Up to 40km Output Optical Power : ±3dB Input Optical Power : ±3dB Receive Sensitivity : ≤ -23dBm Return Loss : 12dBm IR Control Frequency : 20kHz – 60kHz Protection : IEC61000-4-2 Standard Contact Discharge Level 4 (±8KV) Air Discharge Level 4 (±15KV) Lightning Protection Operating Temperature : -20°C to 60°C Storage Temperature : -30°C to 70°C Relative Humidity : 0% – 90% RH Housing Material : Aluminum Alloy Dimensions : 138 × 81.5 × 24mm Weight : TX: 180g ,RX: 180g Color : Black
